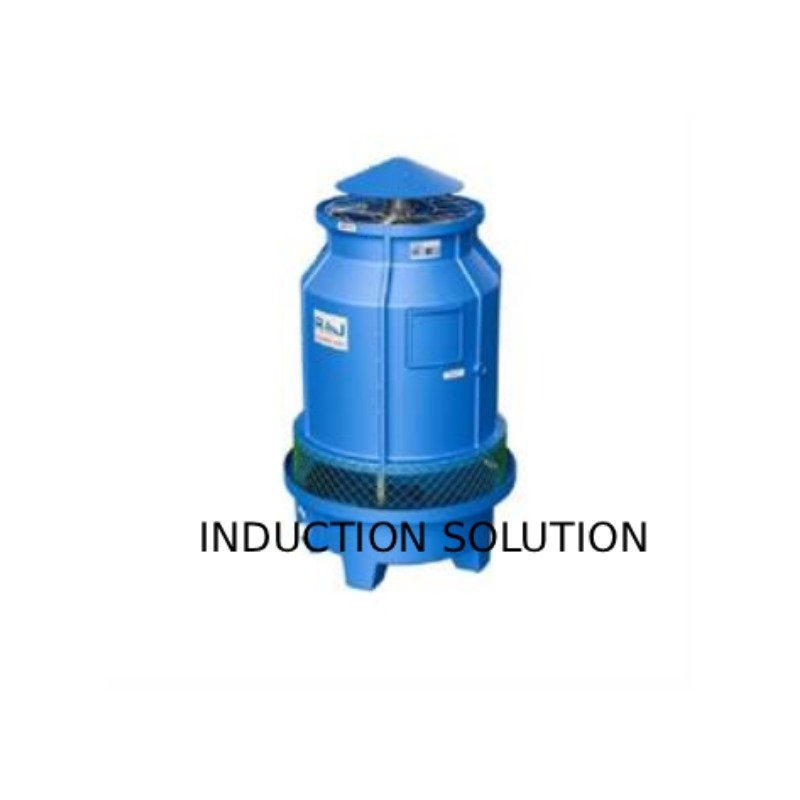

TECHNICAL SPECIFICATION: |
|
|
Model |
80 TR |
|
Type |
Round bottle shape With FRP Basin Counter Flow Type |
|
NO. Of Sets 1 |
1 |
|
Overall Dimensions |
Dia 2500 mm * 2620 W * 3200 mm HT |
|
Dry Weight |
450 KGS. |
|
|
|
|
DESIGN : |
|
|
Water Flow Rate |
800 LPM |
|
Hot Water Temperature |
42 Celcious |
|
Cold Water Temperature |
32 Celcious |
|
Wet Bulb Temperature |
28 Celcious |
|
Cooling Capacity |
350 Kw |
|
Basin Holding Capacity |
1150 Liter |
|
Pressure at Inlet Flange |
0.5 kg/cm |
|
P.V.C. Fills |
84 |
|
P.V.C Fills Dimension Length |
Length: 600 mm, Width: 150 mm, Hight:300 mm |
|
Fills Flute Size |
12 mm |
|
|
|
|
MATERIAL OF CONSTRUCTION |
|
|
Frame Work |
M.S. Hot Dip Galvanized |
|
Casting |
FRP |
|
Fills |
PVC |
|
Bolts, Nuts , Hardware |
S.S. |
|
Fan Blade |
Non Corrosive Plastics |
|
Fan Hub |
Non Corrosive Plastics |
|
Fan Shaft |
EN8 |
|
|
|
|
AUXILIARY EQUIPMENT |
|
|
Fan Type |
Axial Flow, Direct Driven |
|
Fan Dia |
45 Inch |
|
Fan Speed |
960 RPM |
|
Electric Motor Make |
New Bharat / Sabar |
|
Electric Motor Type |
Squirrel Cage, Induction Type |
|
Enclosure/Protection |
Totally Enclosed IP: 55 |
|
H.P./R.P.M. |
2 HP/960 RPM |
|
|
|
|
LOSSES
|
|
|
Evaporation Losses |
1.53 % OF Water Circulation |
|
Drift Losses |
0.144 % OF Water Circulation |
|
Make Up Water Quantity |
1.674 % OF Water Circulation |
|
|
|
|
CONNECTION DETAILS
|
Inlet 75 mm Outlet 75 mm |
