Product
|
Description
|
|
Brand |
Honeywell |
|
Model No. |

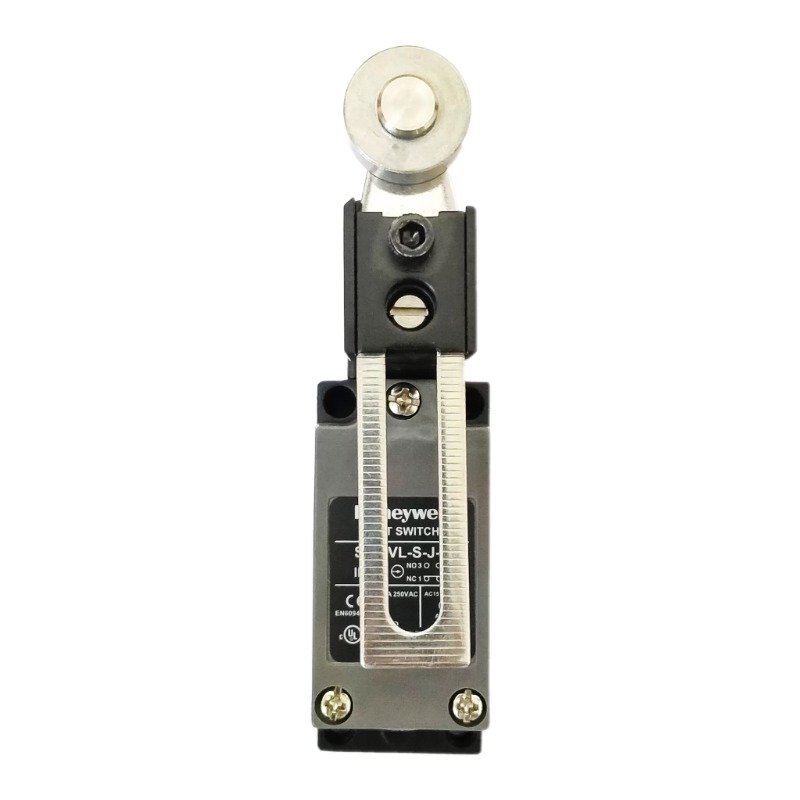

SZL-VL-S-J-N |
|
Type |
Side rotary, adjustable lever steel roller, Ø18 x 6,5 Miniature industrial limit switch |
|
Housing material |
Die-cast metal housing with glass-filled, flame-retardant thermoplastic cover UL 94 flame spread testing: V-0 rated |
|
Contact Material |
Silver Alloy |
|
Contact design |
Snap-action (all versions) Positive-opening contacts (side rotary version only) |
|
Electrical Connection |
Conduit entry or cable gland |
|
Electrical Ratings |
AC-15 A300 DC-13 Q300 |
|
Dielectric Voltage |
1890 Vac for metal housing, 1890 Vac between all terminals to enclosure after durability test |
|
Impulse Voltage |
2500 Vdc |
|
Thermal current (Ith) |
10 A/250 Vac |
|
Leakage Current |
< 10 mA |
|
Humidity |
95 %RH |
|
Shock |
30 G, conforming to IEC 60068-2-27 |
|
Vibration |
10 G, 10 Hz to 55 Hz displacement amplitude 0,75 mm, conforming to IEC 60068-2-6 (wobble excluded) |
|
Operating Temperature |
-20°C to 70°C (with no icing) |
|
Operating speed |
0,05 mm/s to 2 m/s (based on pin plunger limit switch) |
|
Operating frequency |
Mechanical: 120 ops/min; Electrical: 30 ops/min |
|
Mechanical life |
10M cycles @ 120 cpm max |
|
Electrical life |
0.5M cycles @ 30 cpm max. under the rated resistance load |
|
Weight |
120 g to 150 g |
|
Approvals |
CCC, CE, cULus |
|
Pollution Degree |
3 |
|
Environmental Sealing |
IP67 |
